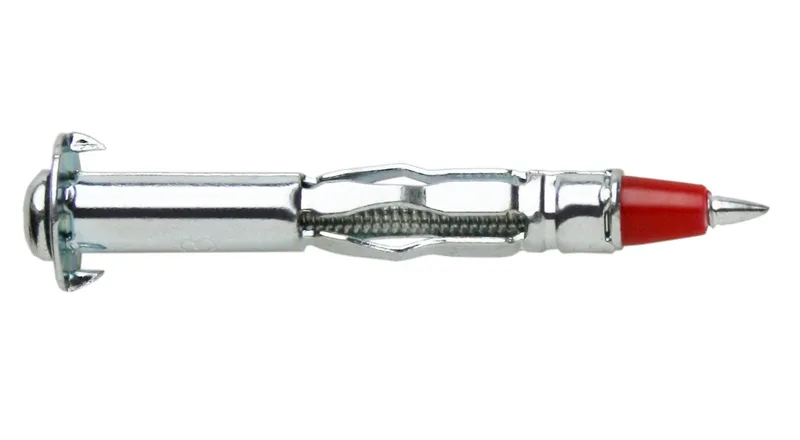

Hollow Wall Anchors
Hollow Wall are light-duty anchors. They require a pre-drilled hole and are used primarily in drywall, sheetrock & plaster. When properly installed, they will not crack or crumble the wall material and resist vibration. The machine screw may be removed and inserted multiple times to accommodate an exchange of fixtures.

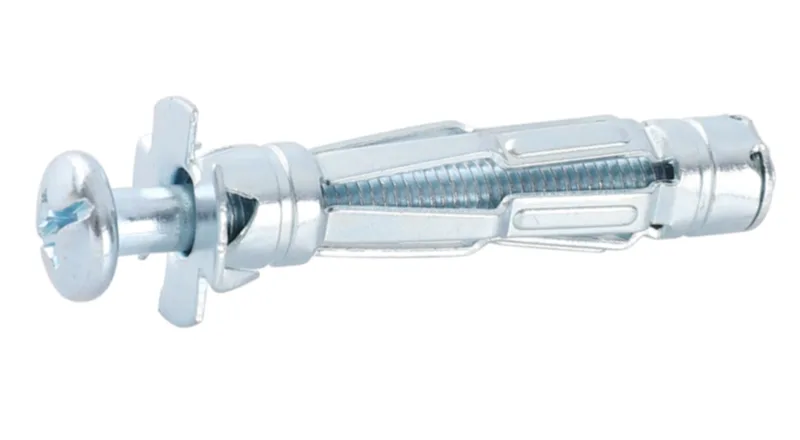

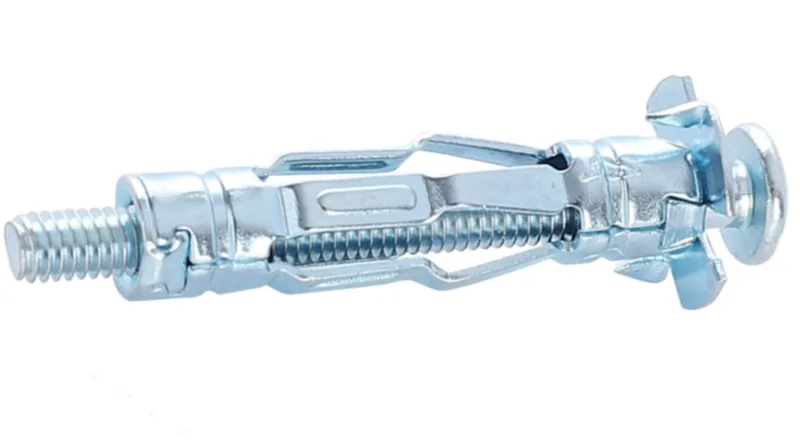

A 3 piece anchoring system consisting of:
1. An expander shell with a flange of the collar with prongs to dig into the bearing surface at the front end of the assembly.. This design allows the shell to be pulled toward the head and form anchoring legs on the blind side of the assembly. The shell has a threaded opening at one end and a flanged collar at the opposite end. The screw passes through the threaded opening at the end to anchor.
2.A combination phillips/slot drive pan head screw
3.A flat washer.
Hollow Wall are light-duty anchors. They require a pre-drilled hole and are used primarily in drywall, sheetrock & plaster. When properly installed, they will not crack or crumble the wall material and resist vibration. The machine screw may be removed and inserted multiple times to accommodate an exchange of fixtures.
A 3 piece anchoring system consisting of:
1. An expander shell with a flange of the collar with prongs to dig into the bearing surface at the front end of the assembly.. This design allows the shell to be pulled toward the head and form anchoring legs on the blind side of the assembly. The shell has a threaded opening at one end and a flanged collar at the opposite end. The screw passes through the threaded opening at the end to anchor.
2.A combination phillips/slot drive pan head screw
3.A flat washer.
Note：Our factory is the key supplier of Stanley®（Dewalt®/Power®）and Simpson® in China.
Details
Place of Origin:Zhejiang, China
Brand Name：Tong Wan
Model Number:Inch/metric
Type:Wall Anchor
Material:Steel，Stainless steel
Diameter:M4-M8
Length:28mm-75mm
Place of Origin:Zhejiang, China
Brand Name：Tong Wan
Model Number:Inch/metric
Type:Wall Anchor
Material:Steel，Stainless steel
Diameter:M4-M8
Length:28mm-75mm
Capacity:Pull out load 30kgs~65kgs
Standard:ISO
Product Name:Hollow Wall Anchors
Application:Cavity anchor
Surface treatment:Zinc Plating，hot-dipped galvanized
Sample:Free
Keyword: Expansion anchor
Capacity:Pull out load 30kgs~65kgs
Standard:ISO
Product Name:Hollow Wall Anchors
Application:Cavity anchor
Surface treatment:Zinc Plating，hot-dipped galvanized
Sample:Free
Keyword: Expansion anchor
Video
Packing

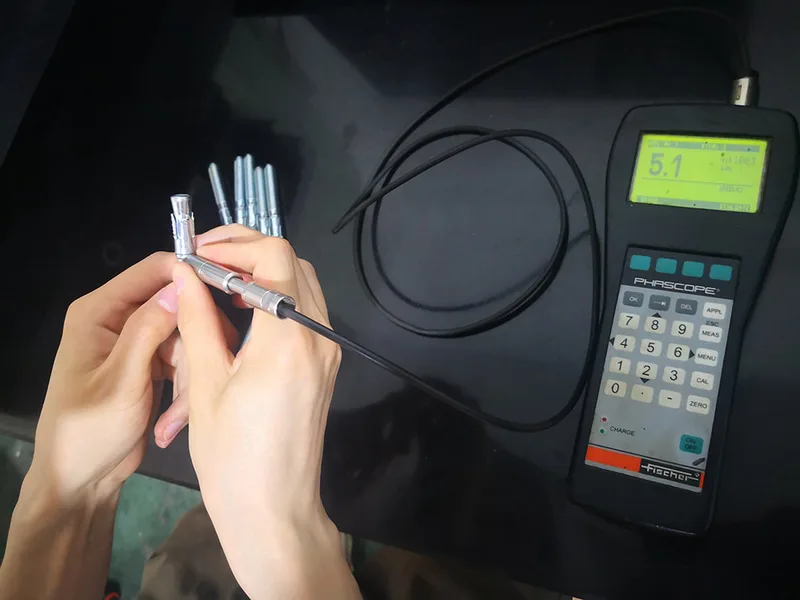

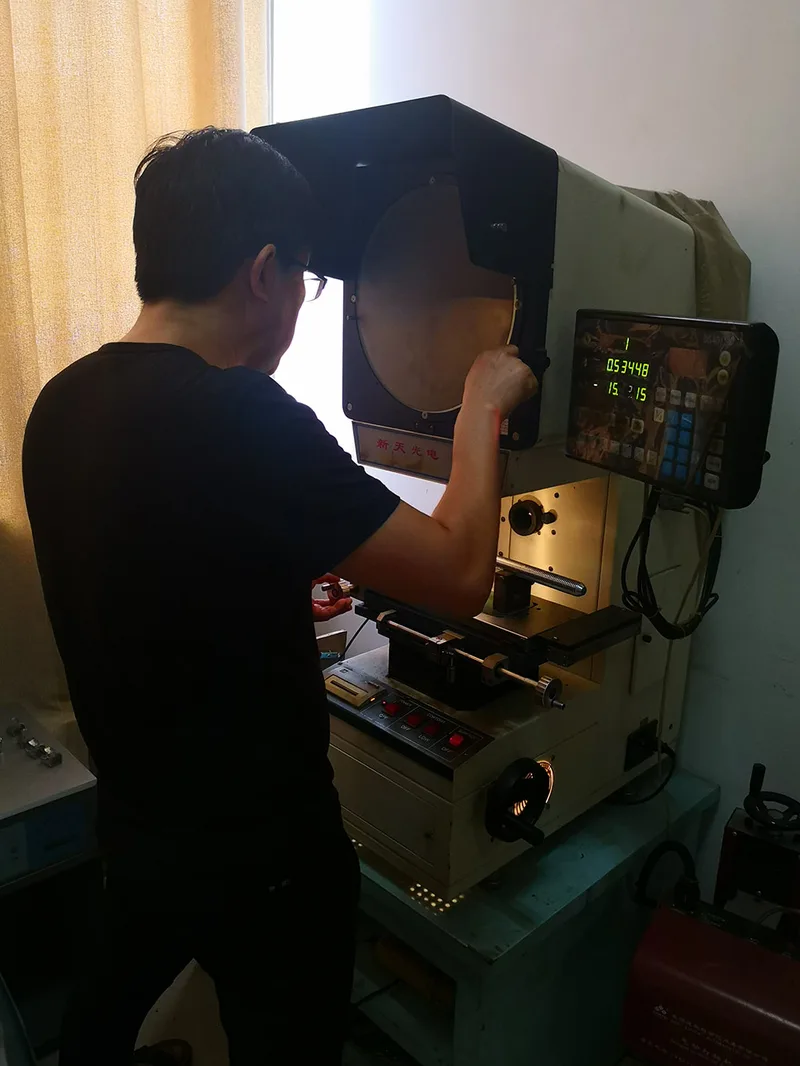

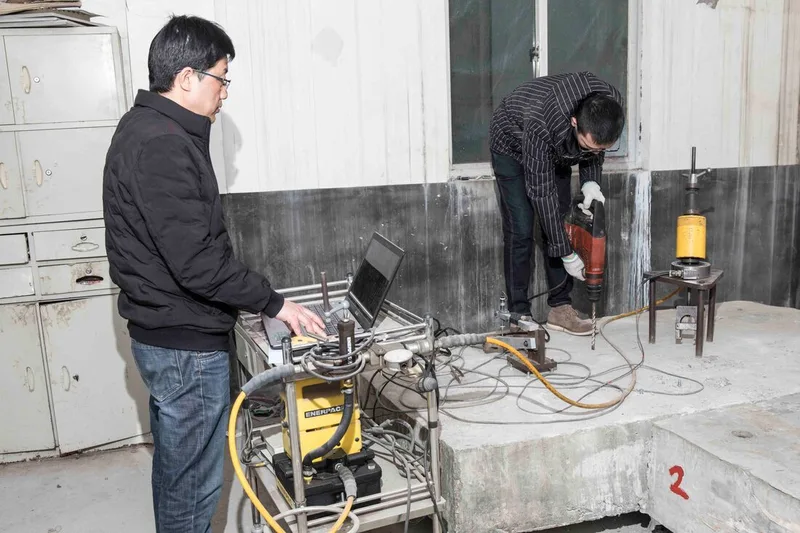

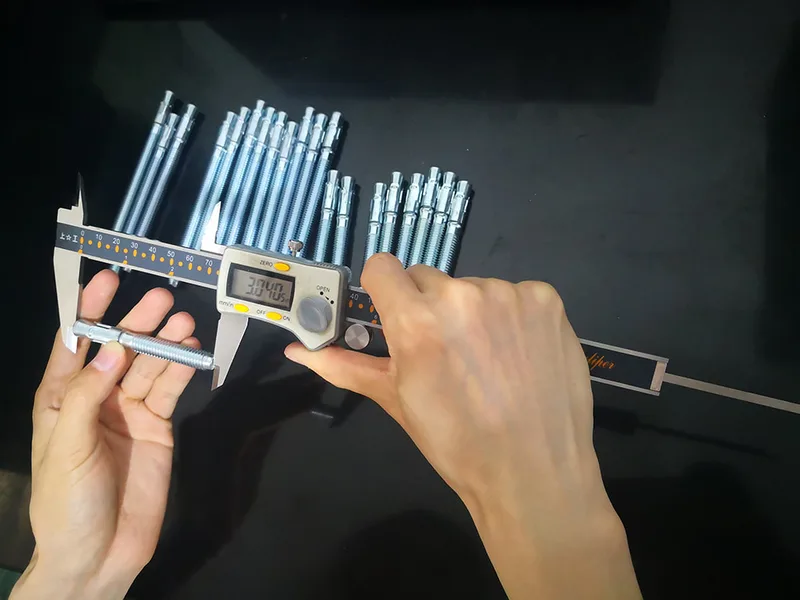

Test
Installation
1. Using a screwdriver, turn the screw clockwise until you feel resistance. This activates the wings behind the drywall.
2. Unscrew the screw from the Hollow Wall Drive Anchor.
3. Insert the screw through the object you need to affix, and screw clockwise into the anchor until there is a strong resistance.
1. Using a screwdriver, turn the screw clockwise until you feel resistance. This activates the wings behind the drywall.
2. Unscrew the screw from the Hollow Wall Drive Anchor.
3. Insert the screw through the object you need to affix, and screw clockwise into the anchor until there is a strong resistance.
The body of hollow wall anchor is all-metal fixing designed for permanent fast installation into plasterboard. it is produced by one-piece , all automatic stamping process without welding of the steel body .
Application: wood lath , metal lath , wallboard , gypsumior cinder block , hollow tile. Coat hooks, television brackets , curtain rods , towel rails, wall lights , lightweight mirror , electrical fixtures
Application: wood lath , metal lath , wallboard , gypsumior cinder block , hollow tile. Coat hooks, television brackets , curtain rods , towel rails, wall lights , lightweight mirror , electrical fixtures
