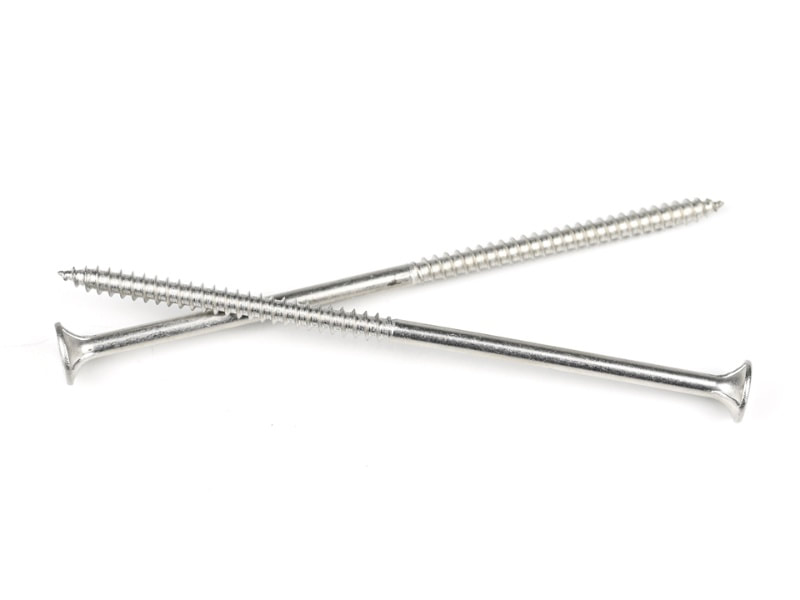

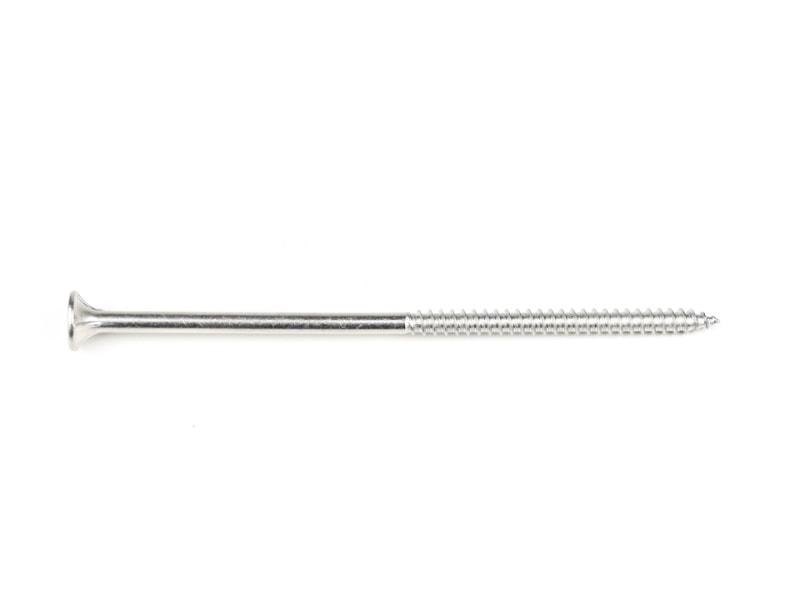

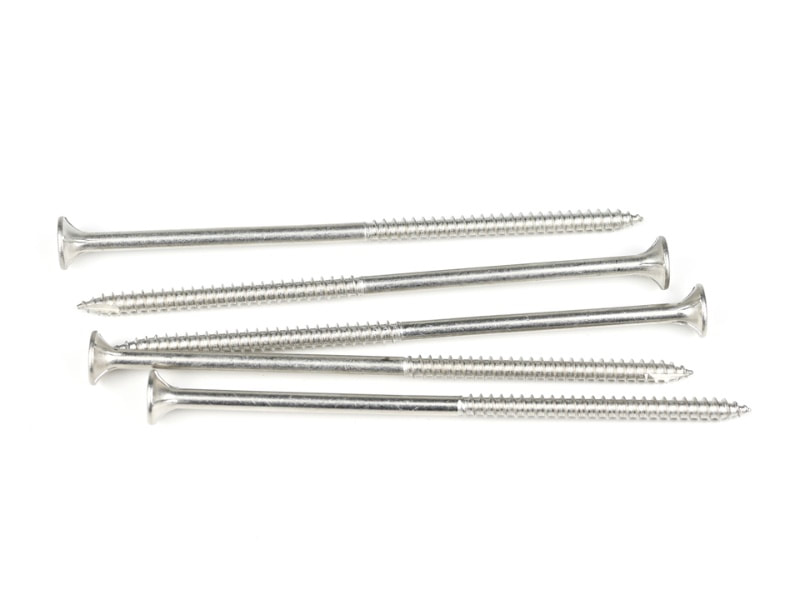

Bugle Batten Screws T-17
A coarse thread bugle batten screw designed for a range of applications such as fastening timber to timber, treated timbers and thin steel. The Type 17 point reduces the need to pre-drill (some hardwoods may require pre-drilling), whilst the bugle head with accompanying ribs aid in achieving a flush finish. The Type 17 point is a sharp, fluted point offering great timber penetration and drive when accompanied by a coarse biting thread, ultimately allowing for a quicker and cleaner install. Available in zinc yellow and class 3 galvanised finish for internal and external applications.
Features:
●304，316 Stainless Steel
●Heavy duty self embedding head

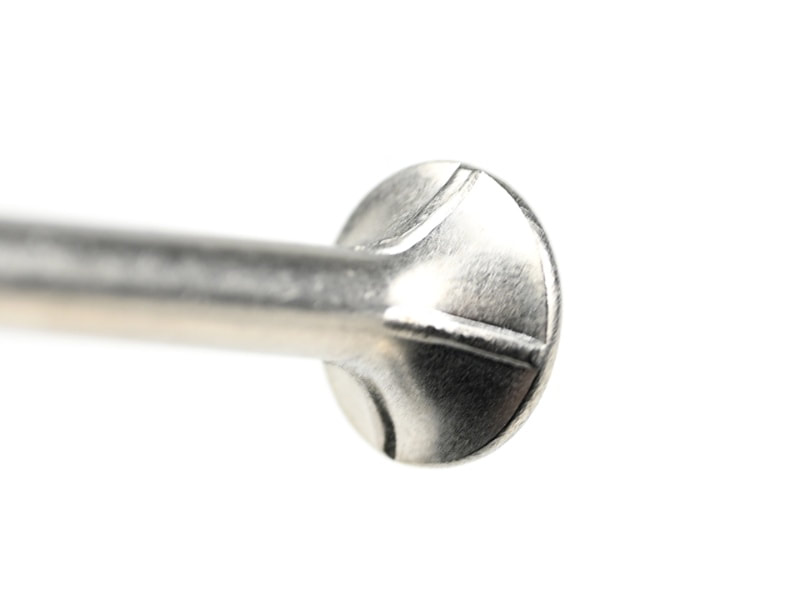

●4 ribs under the head for self embedding

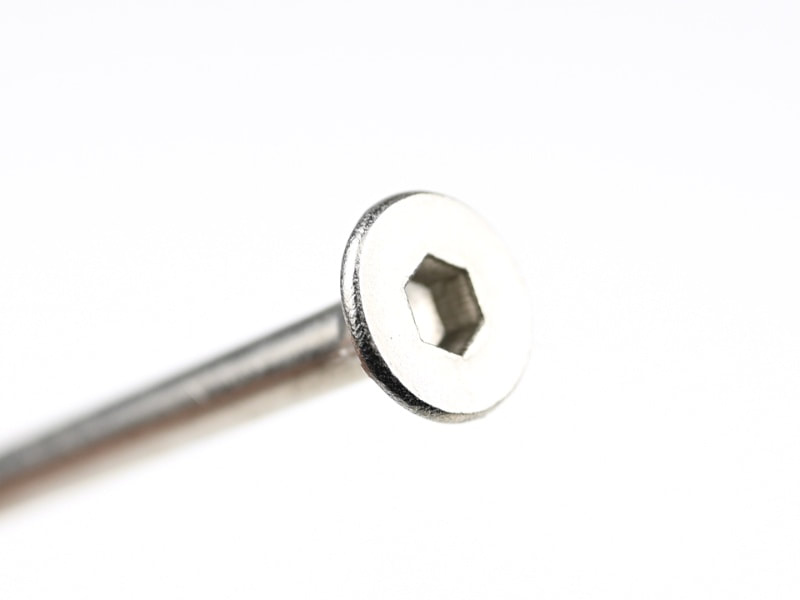

●5mm internal hex drive
●Type 17 Self drilling point for fixing timber without the need to pre-drill
●Slot at end reduces splitting of timber
A coarse thread bugle batten screw designed for a range of applications such as fastening timber to timber, treated timbers and thin steel. The Type 17 point reduces the need to pre-drill (some hardwoods may require pre-drilling), whilst the bugle head with accompanying ribs aid in achieving a flush finish. The Type 17 point is a sharp, fluted point offering great timber penetration and drive when accompanied by a coarse biting thread, ultimately allowing for a quicker and cleaner install. Available in zinc yellow and class 3 galvanised finish for internal and external applications.
Features:
●304，316 Stainless Steel
●Heavy duty self embedding head
●4 ribs under the head for self embedding
●5mm internal hex drive
●Type 17 Self drilling point for fixing timber without the need to pre-drill
●Slot at end reduces splitting of timber
Details
Place of Origin:JiaXing，China
Brand Name：YoLink
Model Number:Inch,mm
Type:T-17
Material:Steel，Stainless steel304/36
Place of Origin:JiaXing，China
Brand Name：YoLink
Model Number:Inch,mm
Type:T-17
Material:Steel，Stainless steel304/36
Diameter:14#
Length:50MM-200MM
Product Name:Bugle Batten Screws T-17
Application:Timber to timber /Treated timbers/Thin steel to timber
Surface treatment:Zinc Plating，Plain
Sample:Free
NORMAL SIZE:
T17 Bugle Batten 14-10x50 （Thread length：30mm）
T17 Bugle Batten 14-10x65 （Thread length：50mm）
T17 Bugle Batten 14-10x75 （Thread length：50mm）
T17 Bugle Batten 14-10x100（Thread length：65mm）
T17 Bugle Batten 14-10x125（Thread length：85mm）
T17 Bugle Batten 14-10x150（Thread length：100mm）
T17 Bugle Batten 14-10x200（Thread length：100mm）
T17 Bugle Batten 14-10x50 （Thread length：30mm）
T17 Bugle Batten 14-10x65 （Thread length：50mm）
T17 Bugle Batten 14-10x75 （Thread length：50mm）
T17 Bugle Batten 14-10x100（Thread length：65mm）
T17 Bugle Batten 14-10x125（Thread length：85mm）
T17 Bugle Batten 14-10x150（Thread length：100mm）
T17 Bugle Batten 14-10x200（Thread length：100mm）
